Install it yourself- Includes air filtration system and complete set of filters and our "Rescue Set" of filters for those smokey days. $615.00
Installed as part of a new HRV Installation- includes all filters and "Rescue Set"- $800.00
Retrofit into an existing HRV. Includes installation, all the filters, a "Rescue Set" and cleaning and rebalancing of the existing HRV.- $1075.00

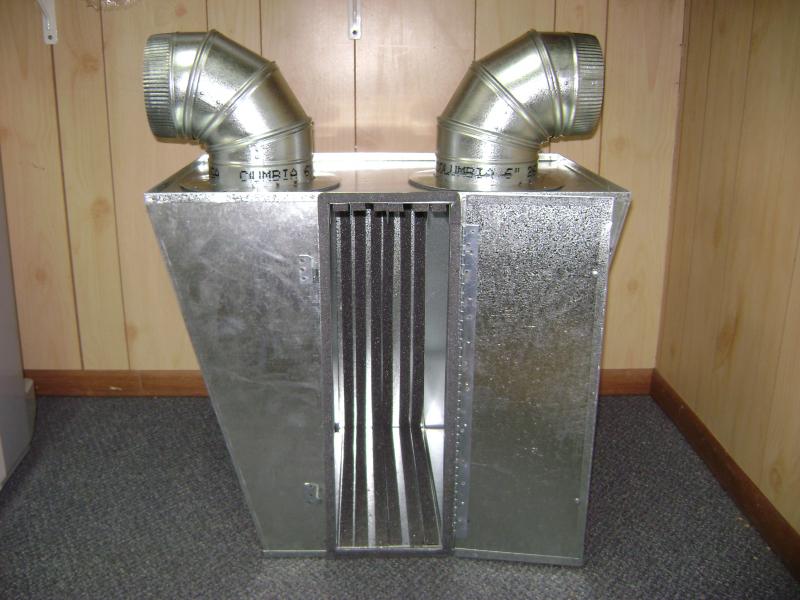

Our fully assembled and gasketed air filtration system is ready to install with any HRV system on the market today. Our air tight take offs with built in adjustable 90's provide a lot of flexibility for easy installation. Air flow can be from left to right or right to left. The 6" Air tight take offs can be installed on the top or on the sides.
Our photo gallery has a number of pictures of a wide variety of installations to better show the flexibility of our system to fit into nearly any location.

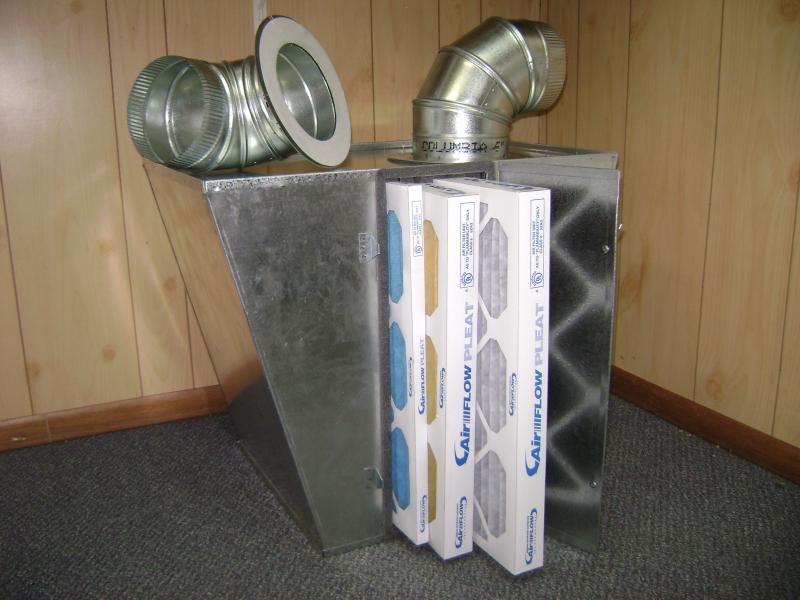

The filters are 16" x 20", with a 1" prefilter and 2-2" main filters. Overall dimensions for the filter rack assembly is 20" tall, 24" wide across the top, and 16" deep. The 90 degree elbows take up another 8" on top.
